Wacker Neuson

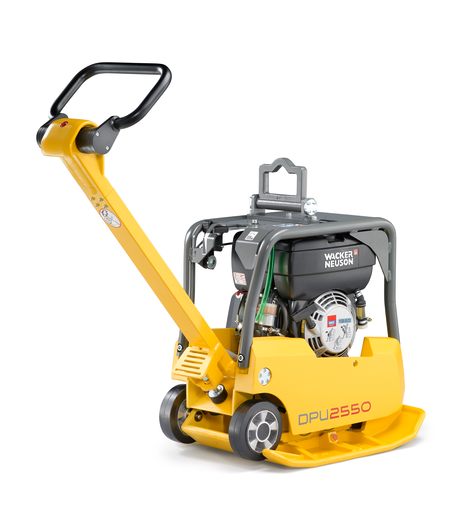

DPU2550H

DPU2550H

5000610036
Regular price £3,755.84 GBP
Regular price Sale price £3,755.84 GBP
Sale On request
Shipping calculated at checkout.

SKU:5000610036

The compact vibratory plate with an excellent weight to performance ratio.
  • Uniquely mobile: The integrated, very sturdy transport gear allows for easy transport on the construction site.
  • Intuitive control handle: Control of the movement of direction as well as the speed in the same movement sequence - without changing grips, both hands stay on the control unit
  • Low hand-arm vibrations (HAV) (well below 2.5 m/s²)
  • Height adjustable center pole
  • Safety setting: Machine moves away from the operator if the control handle is released
  • Large-sized engine for a long service life
  • Water trap with inspection glass
  • The engine and tank are protected by a sturdy frame, which is also useful for a sturdy tie-down during transport.
  • All maintenance points are easily accessible, easily visible air cleaner capacity display
  • Thick, wear resistant base plate made from nodular cast iron
  • Very sturdy, free from play center pole lock, easy to actuate for a secure transport
  • Sturdy, fold-down lifting eye
  • Quick and easy assembly of a paving pad possible
You will also find an appropriate paving pad here in the shop for the protection of paving stone bottoms.
Tank capacity 3,0 l
Hydraulic fluid type Renolin MR 520
Exciter oil volume 0,60 l
Hydraulic fluid volume 0,4 l
Exciter oil type 75W-90 API GL-4
ENGINE Metric
Battery capacity (nom. value) 0 Ah
Air cleaner dry air filter
Inclined position max. 25,0 °
Power rating max. 3,5 KW
Engine operating mode four-stroke
Cooling air cooling
Exhaust-gas limit EU Stage V
Oil specification SAE 10W-40
Starter battery Voltage 0 V
Fuel consumption 0,40 L/hr
Engine speed (Power max.) 3.600 1/min
Starter type Recoil starter
Oil filling min. 0,40 l
Engine type Diesel engine
Cylinder 1
Standard (Power max.) ISO 3046 IFN
Engine Manufacturer Hatz
Cylinder capacity 243 cm3
Nominal Engine speed 2.800 1/min
Tank capacity 3,00 l
Fuel Diesel EN 590
Effective power 3,1 KW
Oil filling max. 0,90 l
Oil volume incl. filter change 0,90 l
MECHANICAL - OUTPUT DETAILS Metric
Vibrations 5.400 1/min
Gradeability 46,6 %
Transmission FKK
Centrifugal force 25,000 kN
Vibrations (Hz) 90 Hz
Area capacity 540 m2/h
Forward Running 18,00 m/min
HYDRAULIC Metric
Operating pressure hydraulics 0,0 bar
max. perm. hydraulic pressure 0,0 bar
ELECTRICAL SYSTEM Metric
Remote Control Bat. Capacity 0 h
Coding options 0
Electrode distance 0 0 0
Recommended Battery Typ 0
Charging Time 0,00 h
Remote Control Range 0 m
MECHANICAL DETAILS Metric
Operating weight 166,0 kg
Ground clearance 736 - 846 mm
Height 1.097 mm
Width 500 mm
Length Drawbar in op. pos. 1.292 mm
ENVIRONMENT DATA Metric
Operating temperature range -7 - 45 °C
Sound level LpA (Standard) EN 500-4
Sound power LWA, guaranteed 108,0 dB(A)
Storage temperature range -7 - 45 °C
HAV summation (average value) 2,7 m/s2
Uncertainty in measurement HAV 0,5 m/s2
HAV summation (Standard) EN 500-4
Sound level LpA 86,0 dB(A)
Sound power LWA (Standard) EN 500-4
Sound power LWA, measured 107,0 dB(A)
Custom Attributes Metric
Model serie DPU
